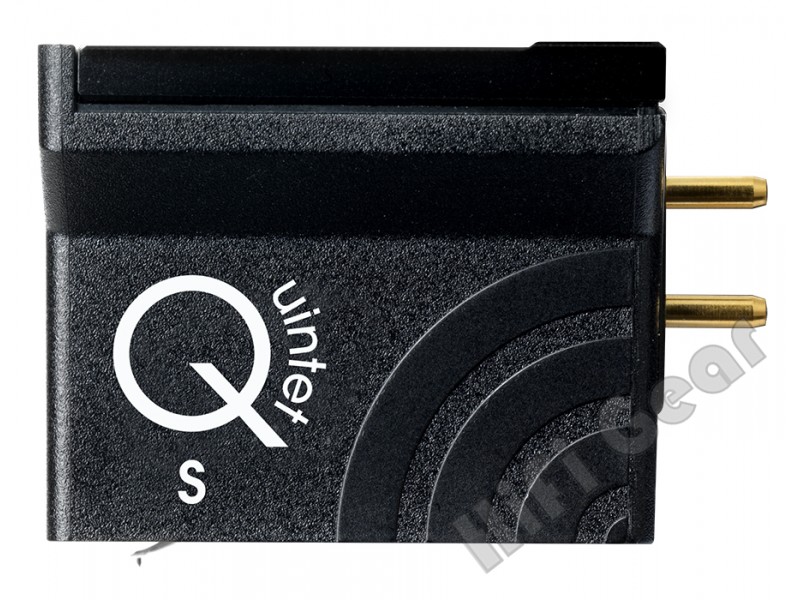

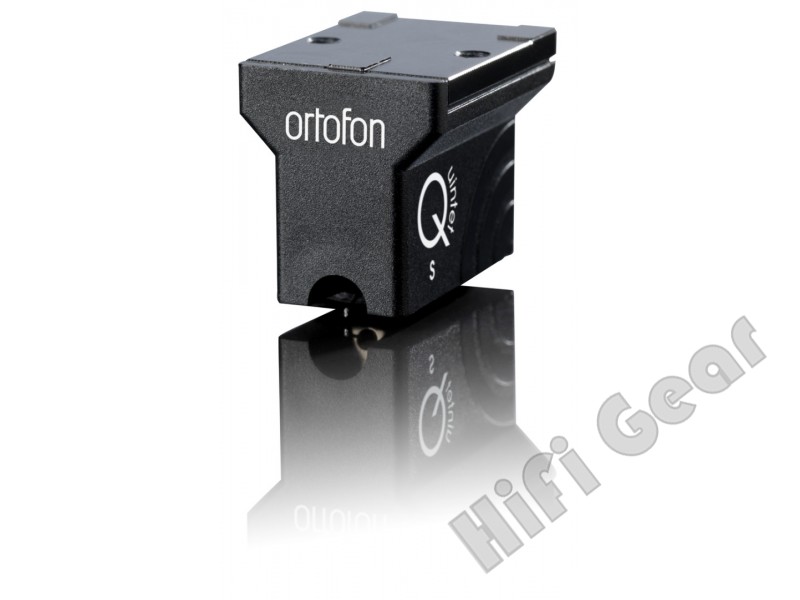

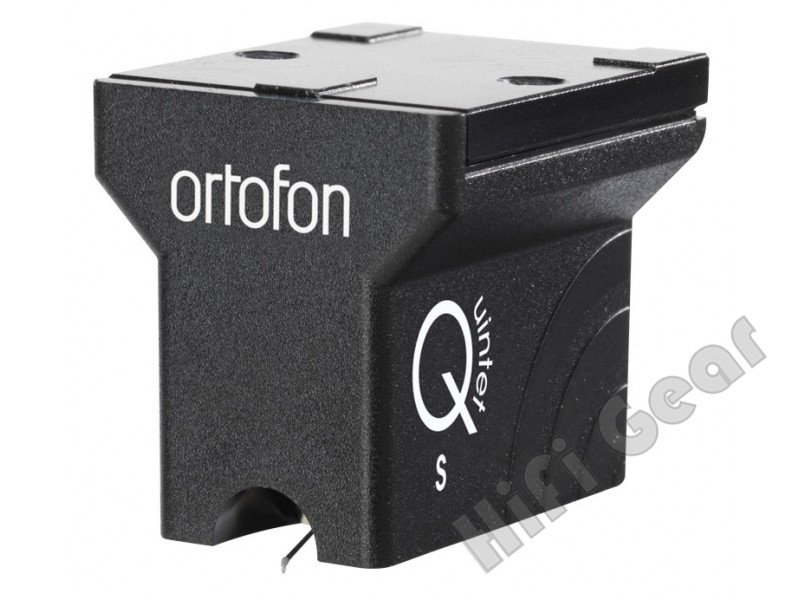

Ortofon Quintet Black S Cartridges (Free Local Delivery)

Ortofon Quintet Black S Cartridges (Free Local Delivery)
  • Ortofon Quintet Black S Cartridges (Free Local Delivery)
  • Part Number
    :
    Quintet Black S
  • Category
    :
    Moving Coil Cartridges
  • Lead Time
    :
    3 Weeks
  • Price
    :
    HK$9,980.00/pc

  • Qty
    :
  • Rating
    :
    0 reviews

Enter the Exclusive world of Ortofon’s famous moving coil sound!

The Quintet Red is a perfect introduction to the world of Ortofon moving coils.
It features an Elliptical diamond which is cut and polished to Ortofon’s standards.

This entry-level MC cartridge has very high price-to-performance ratio and is a perfect all-rounder for the newcomers to the world of Moving Coil cartridges.

MC Quintet Red is an all-purpose cartridge that delivers open, dynamic sound with a slight touch of warmth.

The ST-7 transformer is a perfect match for the MC Quintet Red cartridge.

LH-4000 headshell is specially recommended for MC Quintet cartridges series.

Fully exposed Shibata stylus design is used for better high frequency response

Sapphire (sapphire material) used in expensive cartridges is used as the needle bar

Output: 0.3mV

Weight: 9g

Suggested input impedance: no less than 20 Ω

Fully exposed Shibata stylus design is used for better high frequency response

Sapphire (sapphire material) used in expensive cartridges is used as the needle bar

Output: 0.3mV

Weight: 9g

Suggested input impedance: no less than 20 Ω



Output voltage at 1000 Hz, 5cm/sec. - 0.3 mV
Channel balance at 1 kHz - < 1.0 dB
Channel separation at 1 kHz - > 23 dB
Channel separation at 15 kHz - > 15 dB
Frequency response 20-20.000 Hz - +/- 1.5 dB
Tracking ability at 315Hz at recommended tracking force *) - 80 µm
Compliance, dynamic, lateral - 15 µm/mN
Stylus type - Nude Shibata on Sapphire cantilever
Stylus tip radius - r/R 6/50 µm
Tracking force range - 2.1-2.5 g (21-25 mN)
Tracking force, recommended - 2.3 g (23 mN)
